NEDOSTUPAN
Moćno i rafinirano izlazno pojačalo, koje će oplemeniti zvuk svakog audio-sistema. Može se koristiti za bi-amping i tri-amping.
TEHNIČKE KARAKTERISTIKE:
Broj kanala: 2
Snaga po kanalu (8 oma): 85
Snaga po kanalu (4 oma): 125
Ukupna izobličenja: 0,005 %
Odnos signal/šum: 108 dB
Frekventni raspon: 3 Hz – 100 kHz
Audio ulazi: 1x RCA i XLR
Audio izlazi: 1x RCA i XLR
Specifičnosti:
Daljinski upravljač: Ne
Dimenzije: 432 x 80 x 330 mm
Masa: 13 kg
Raspoložive boje: Black, silver

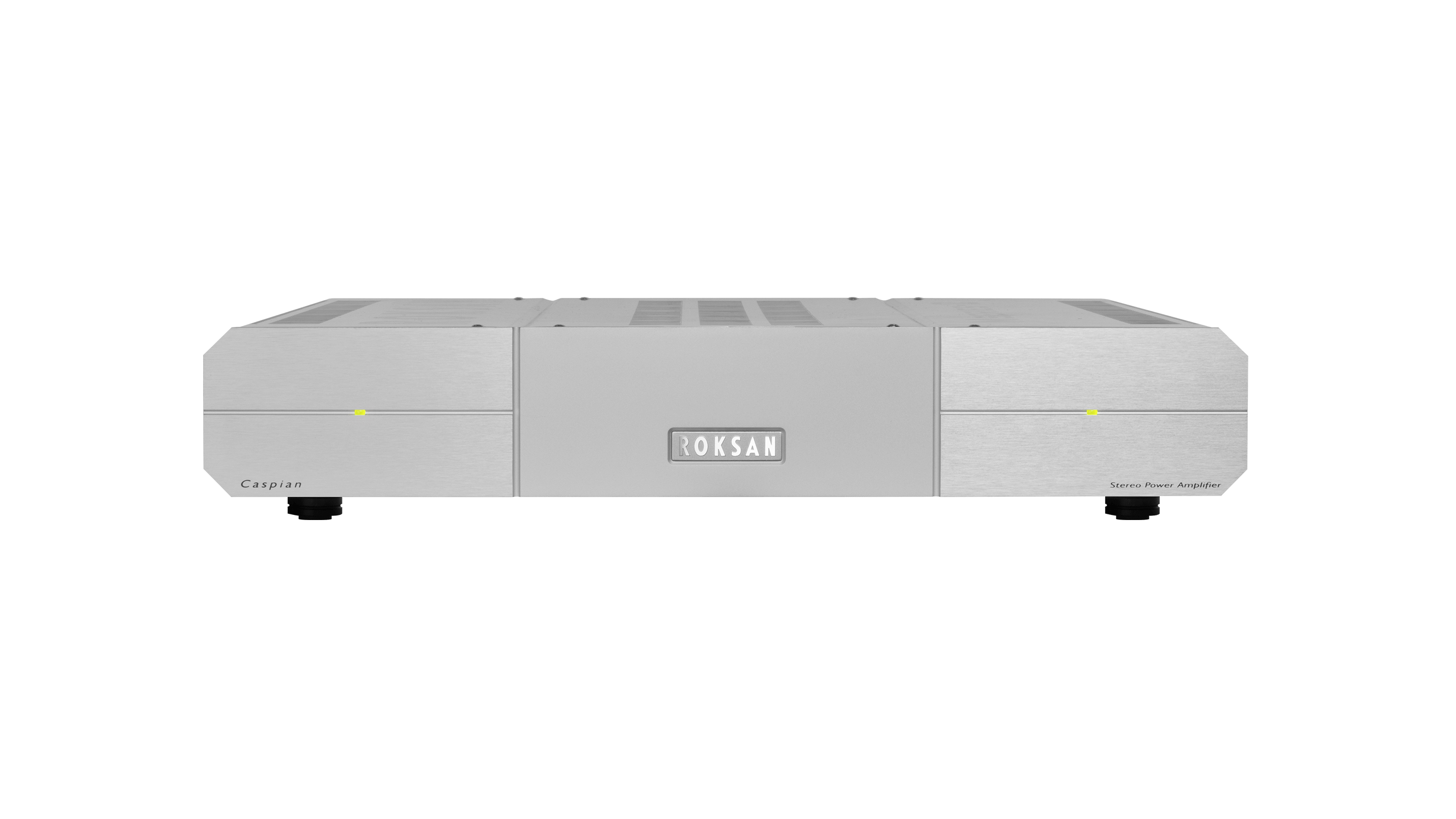

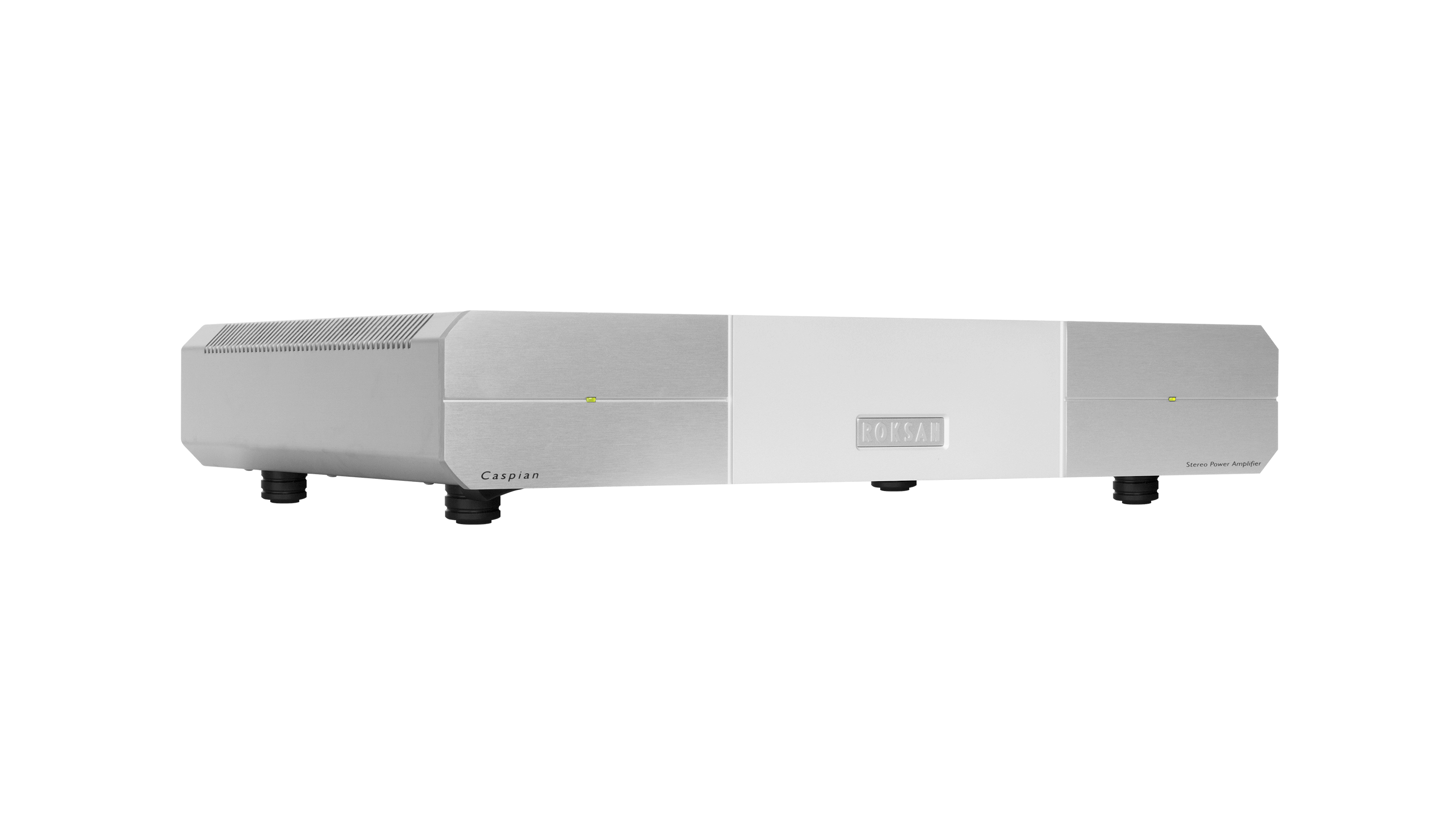

The Roksan Caspian Power Amplifier is a superb addition to a Caspian Integrated Amplifier to bi-amp suitable loudspeakers with its powerful and solid sound.
It is also compatible with most pre-amplifiers to form a high-quality dedication pre and power amplifier combination.
The Caspian Power Amplifier is a powerful and highly musical sounding design that is ideal for matching with the Caspian Integrated Amplifier to form a bi-amp (or tri-amp) system, or as a standalone power amplifier with a separate pre-amplifier.
This gripping sounding amplifier delivers a powerful, smooth and musical sound that is consummately enjoyable, this power amplifier is a superb addition to any system.
Key Features
Stereo power amplifier designed to perfectly complement the Caspian M2 range
XLR and RCA inputs
Ideal for use in multi-amping with the Caspian M2 Integrated Amplifier
An excellent match for a wide range of other high-end pre-amplification
Amplifier Type
Class-AB
Inputs
RCA, XLR
Input Impedance
38 kohms
Input Sensitivity
240 mV rms
Output
Speakers (L & R), RCA, XLR
Power Output (Per Channel)
> 85 W (8 ohms)
> 125 W (4 ohms)
Power Supply
350 VA Power Amplifier
60 VA Ultra low noise Toroidal transformer
Pre-amplifier section toroidal
Frequency Response
-3 dB, <3 Hz - >100 kHz
Gain
31.6 dB
Harmonic Distortion
<0.005 % 1 kHz - 8 ohms
Signal to Noise Ratio
100 dB (ref. 900 mV)
Power Source
220 V - 240 V 50 Hz / 60 Hz
100 V - 120 V 50 Hz / 60 Hz
Power Consumption
Standby: 5 W Full power /
2 channels: 8 ohms = <330 W /
4 ohms = <550 W
Dimensions (W x H x D)
432 x 80 x 330 mm (incl. feet)
Weight
9.5 kg
Moćno i rafinirano izlazno pojačalo, koje će oplemeniti zvuk svakog audio-sistema. Može se koristiti za bi-amping i tri-amping.
TEHNIČKE KARAKTERISTIKE:
Broj kanala: 2
Snaga po kanalu (8 oma): 85
Snaga po kanalu (4 oma): 125
Ukupna izobličenja: 0,005 %
Odnos signal/šum: 108 dB
Frekventni raspon: 3 Hz – 100 kHz
Audio ulazi: 1x RCA i XLR
Audio izlazi: 1x RCA i XLR
Specifičnosti:
Daljinski upravljač: Ne
Dimenzije: 432 x 80 x 330 mm
Masa: 13 kg
Raspoložive boje: Black, silver
The Roksan Caspian Power Amplifier is a superb addition to a Caspian Integrated Amplifier to bi-amp suitable loudspeakers with its powerful and solid sound.
It is also compatible with most pre-amplifiers to form a high-quality dedication pre and power amplifier combination.
The Caspian Power Amplifier is a powerful and highly musical sounding design that is ideal for matching with the Caspian Integrated Amplifier to form a bi-amp (or tri-amp) system, or as a standalone power amplifier with a separate pre-amplifier.
This gripping sounding amplifier delivers a powerful, smooth and musical sound that is consummately enjoyable, this power amplifier is a superb addition to any system.
Key Features
Stereo power amplifier designed to perfectly complement the Caspian M2 range
XLR and RCA inputs
Ideal for use in multi-amping with the Caspian M2 Integrated Amplifier
An excellent match for a wide range of other high-end pre-amplification
Amplifier Type
Class-AB
Inputs
RCA, XLR
Input Impedance
38 kohms
Input Sensitivity
240 mV rms
Output
Speakers (L & R), RCA, XLR
Power Output (Per Channel)
> 85 W (8 ohms)
> 125 W (4 ohms)
Power Supply
350 VA Power Amplifier
60 VA Ultra low noise Toroidal transformer
Pre-amplifier section toroidal
Frequency Response
-3 dB, <3 Hz - >100 kHz
Gain
31.6 dB
Harmonic Distortion
<0.005 % 1 kHz - 8 ohms
Signal to Noise Ratio
100 dB (ref. 900 mV)
Power Source
220 V - 240 V 50 Hz / 60 Hz
100 V - 120 V 50 Hz / 60 Hz
Power Consumption
Standby: 5 W Full power /
2 channels: 8 ohms = <330 W /
4 ohms = <550 W
Dimensions (W x H x D)
432 x 80 x 330 mm (incl. feet)
Weight
9.5 kg
