Trust the Transparency

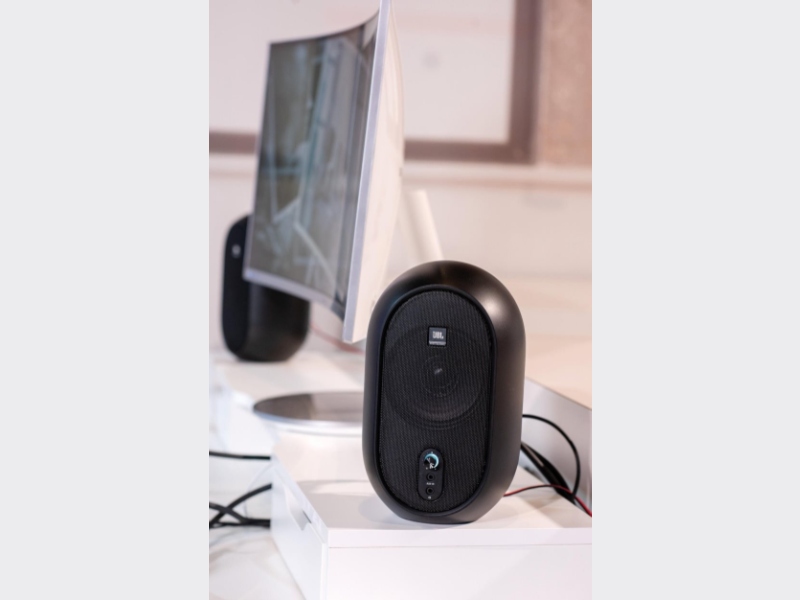

With JBL 104 Reference Monitors, you’ ll hear true clarity and detail, with no coloration. The 104s deliver crisp highs and rich bass just as intended. They’ re optimized for desktop placement, with neutral low-frequency performance. And their smooth off-axis response means you can monitor with confidence in a wide sweet spot.
Pro Performance, Scaled to Size
The world’ s top recording studios and touring artists rely on JBL Professional monitors to deliver unparalleled fidelity and performance. Now, we’ ve optimized that technology in our smallest form factor ever. The 104 Reference Monitor’ s innovative new coaxial driver design features a high-frequency driver aligned with a precisely contoured woofer cone to deliver accurate response, exceptional detail and impressive off-axis performance, for the most neutral, accurate presentation, desktop to desktop, room to room. The cabinet’ s precisely contoured low-frequency port works with the driver to provide accurate bass at all listening levels. And with low frequency extension down to 60 Hz, you’ ll be impressed with the bass you get, even without a subwoofer.
Loud and Clear
JBL 104 Reference monitors offer this high level of performance, even at loud playback levels. This is accomplished through clean, integrated 60-watt Class D amplification that distributes 30 watts per speaker. And with their efficient design, One Series speakers can be driven to 104db SPL (peak), without the distortion found in other monitors in their class.
General Specifications Low Frequency Transducer4.5 in (118 mm)
High Frequency Transducer0.75 in (19 mm), soft dome
Crossover1725 Hz, 1st order
Input Sensitivity (-10 dBV Input)87 dB / 1 m
Power Amp60 W (30 W each speaker), Class D
Maximum Continuous SPL89 dB
Maximum Peak SPL102 dB
Maximum SPL, Momentary Peak104 dB
Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu
Frequency Range60 Hz – 20 kHz
System Distortion Criteria<10% THD at maximum output with full compressor / limiter engagement
Electrical Distortion Criteria<0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
Signal to Noise Ratio75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF
Coverage (Horizontal x Vertical)120º x 80º
Dimensions Height9.72 in (247 mm)
Width6.02 in (153 mm)
Depth4.88 in (124 mm)
Net WeightMaster Monitor = 4.54 lb (2.06 kg); Slave Monitor = 3.81 lb (1.73 kg)
Design
Enclosure TypePorted
Enclosure MaterialABS with metal grille
Enclosure FinishMatte black acrylic paint

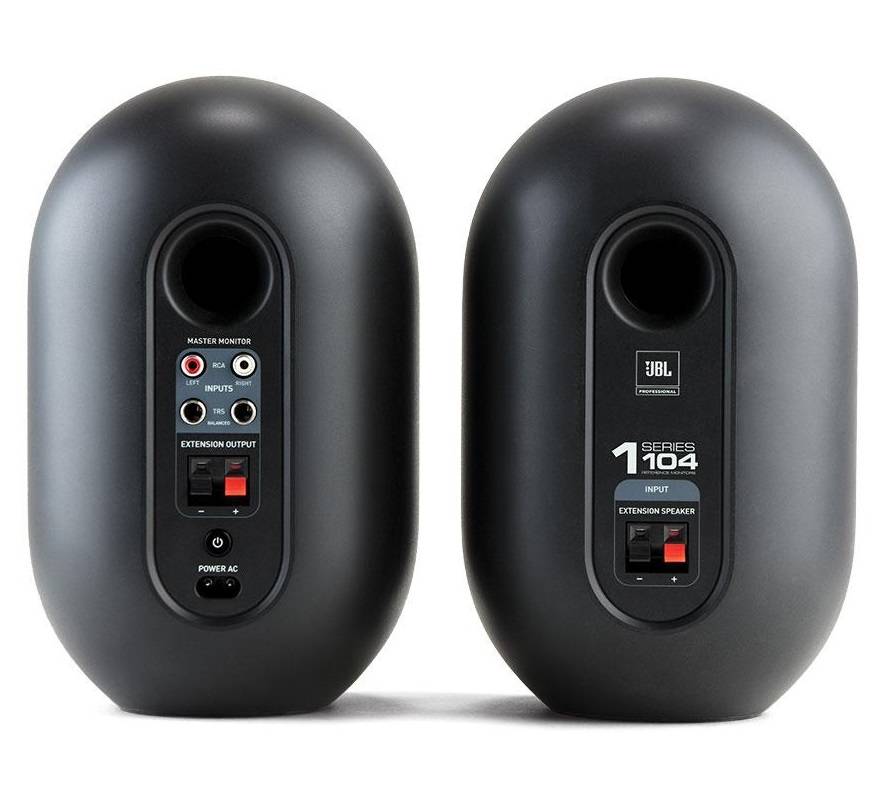

Audio Output
Output Connectors1 x 3.5 mm (1/8") stereo headphone with auto speaker mute
Audio Input Input Connectors2 x 1/4-inch (6.5 mm) balanced (+4 dBu); 2 x RCA (-10 dBV); 1 x 1/8-inch (3.5 mm) unbalanced (-10 dBV) Powering Interface
AC Input Voltage100 – 240 VAC (± 10%), 50/60 Hz
Current Draw85 watts
Electrical Current Draw (W) Idle 100 / 240 VAC3.52 / 3.70
Electrical Current Draw (W) Max Power 100 / 240 VAC80 / 80
Electrical Current Draw (W) Low Power Standby Mode 100 / 240 VAC0.34 / 0.46
Deklaracija :
Naziv: JBL Studio 104
Vrsta robe: bluetoot bezicni zvucnik
Uvoznik: AVL Projekt Int Doo
Zemlja proizvodnje: Kina
