Furutech (alfa) PC-Triple C je dizajniran od nekoliko odabranih vodiča sa specijalnim Furukawa OFC-om visoke čistoće pomoću posebnog procesa izrade.Za razliku od klasičnog OFC,Furukawa posebnim postupkom lijevanja uklonjene su gotovo sve nečistoće na razini mikrona.Dizajniran i razvijen za audio signal,čvrst a ujedno fleksibilan kabel.

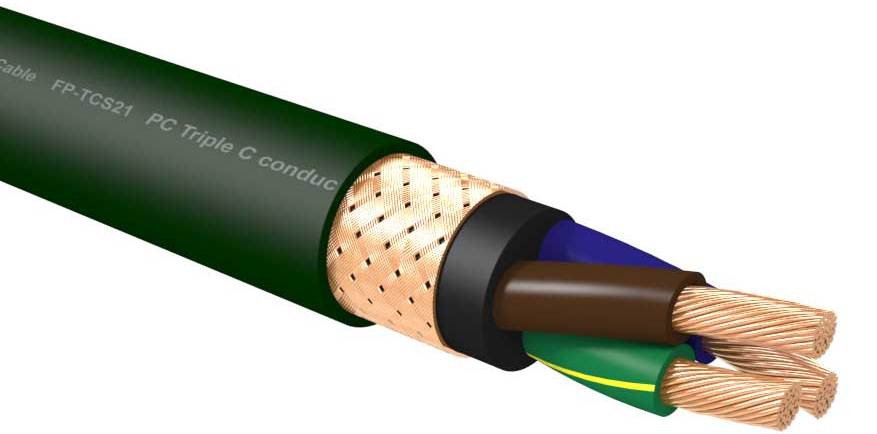

SPECIFICATIONS
– Alpha PC-Triple C conductor: diameter 1.9mm (14 AWG)
– Insulation: Special grade Flexible PVC (Brown, Light Blue, Green/Yellow) diameter 3.5mm
– Inner Sheath: Special grade Flexible PVC (Black) diameter 9.2mm
– Shield: 0.12mm OFC Wire Braid
– Outer Sheath: Flexible PVC (Dark Green) diameter 12.8mm
「Characteristics」
1. Purity > 99.996% 2. Conductivity (EC)≒101.5 IACS% 3. Tensile strength (TS) ≒250 MPa
4. Elasticity (E) ≒35% Wire (1.3mmΦ)
Korak 1: OFC visoke čistoće podleže promenljivom kovanju i savijanju pod visokim pritiskom
Power flow →→→ Power flow →→→ Power flow →→→
Crystal grain boundaries are in all directions, not allowing smooth signal transmission.
Continuous transport forging elongates the crystals…
…until the crystals form a longitudinal direction allowing for smooth signal transmission.
Step 2: The fixed-angle continuous transport forged conductor is then subjected to further a elongation and pressing process to create the super-fine conductors. The conductors then go through a time and temperature annealing process which fuses the crystals to each other. The finished conductor is now Alpha PC-Triple C.
Characteristics:
Purity > 99.996%
Conductivity (EC) ≒101.5 IACS%
Tensile strength (TS) ≒250 MPa
Elasticity (E) ≒35% wire (1.3 mmΦ)
RATING
Voltage rating: 20A 125V / 16A 250V
KARAKTERISTIKE
Dizajnirano za audiofile
Audiofili su zahtevna publika. Imaju velika očekivanja od vrhunskih kablova za napajanje, i to s pravom. Žele niži nivo šuma. Povećanu rezoluciju. Dublji, čvršći bas, poboljšanu zvučnu scenografiju i poboljšanu sliku. Plus, naravno, robusnu konstrukciju sa čvrstom, sigurnom vezom. Zato je Furutekov Alfa PC-Trostruki C provodnik zamišljen posebno za audiofilsku upotrebu i razvijen da pruži najčistiji mogući prenos snage.
Preciznost mača
Samuraji su znali ponešto o preciznom inženjerstvu: ko bi mogao da se usprotivi oštrom tehnologiji katane, samurajskog mača? Ključ njegove izrade bio je proces kovanja koji je uključivao ponovljene krugove savijanja metala. Furutekov Alfa PC-Trostruki C provodnik odražava tu tehniku, koristeći genijalni patentirani proces kovanja u kojem se promenljivi visoki pritisci primenjuju na visokočisti bakar bez kiseonika, u suštini savijajući metal desetine hiljada puta. Granice kristalnih zrna bakra se tako transformišu iz vertikalnog pravca u uzdužnu orijentaciju, omogućavajući električnom signalu da znatno glatko teče duž završenog kabla. Kristali bakra postaju znatno ujednačeniji i bolje povezani, kako fizički tako i električno, stvarajući mnogo provodljiviji kabl.
Rezultat je zvuk bez artefakata i nečistoća, pružajući potpuno ubedljivije iskustvo slušanja. Kao rezultat toga, primetićete niz važnih poboljšanja:
• Niži nivo šuma, što omogućava da više muzike teče kroz vaš sistem.
• Veća rezolucija i unutrašnji detalji, što vam omogućava da još dublje čujete omiljene snimke.
• Čvršće, kontrolisanije niske frekvencije, sa više trodimenzionalnih tekstura.
• Čišći, jasniji visoki tonovi sa gotovo neograničenim proširenjem za današnje snimke visoke rezolucije.
• Veći fokus slike, sa preciznijom i realističnijom reprodukcijom zvučne scene.
• Povećanje dinamike u celom frekventnom opsegu.
Da li je zaista moguće čuti takve razlike od kabla za napajanje? Apsolutno. Ali ne verujte nam na reč – sami iskusite razliku. Zamenite svoje postojeće kablove za napajanje hi-fi uređaja sa Furutekovim Alfa PC-Tripl C kablom za napajanje i osećaćete se bliže svojoj muzici nego ikada ranije. Ili ih dodajte svom kućnom bioskopu za oštrije, jasnije video slike i realnije boje.
Designed for audiophiles
Audiophiles are a discerning crowd. They have high expectations of premium power cables, and rightly so. They want a lowered noise floor. Increased resolution. Deeper, tighter bass, improved soundstaging and enhanced imaging. Plus of course a rugged construction with a tight, secure connection. Which is why Furutech’s Alpha PC-Triple C conductor was conceived specifically for audiophile use and developed to deliver the purest power transfer possible.
The precision of a sword
The Samurai knew a thing or two about precision engineering: who could argue with the razor-sharp technology of the katana, the Samurai sword? Key to its craftsmanship was a forging process involving repeated rounds of metal folding. Furutech’s Alpha PC-Triple C conductor mirrors that technique, using an ingenious proprietary forging process in which variable high pressures are applied to high-purity oxygen-free copper, essentially folding the metal tens of thousands of times. The copper’s crystal grain boundaries are thus transformed from a vertical direction into a longitudinal orientation, allowing the electrical signal to flow considerably more smoothly along the completed cable. The copper’s crystals become vastly more uniform and well-connected both physically and electrically, creating a much more highly conductive cable.
The result is a sound that’s free of artifacts and impurities, delivering a wholly more compelling listening experience. As a result, you’ll detect a number of important improvements:
• A lowered noise floor, allowing more music to flow through your system.
• Greater resolution and inner detail, letting you hear even more deeply into much-loved recordings.
• Tighter, more controlled low frequencies, with more three-dimensional textures.
• Cleaner, clearer highs with almost unlimited extension for today’s hi-resolution recordings.
• Greater image focus, with a more precise and realistic reproduction of the soundstage.
• An increase in dynamics throughout the entire frequency range.
Is it really possible to hear such differences from a power cable? Absolutely. But don’t take our word for it – experience the difference for yourself. Replace your existing hi-fi power cords with Furutech’s Alpha PC-Triple C bulk power cable and you’ll feel closer to your music than ever before. Or add them to your home theater system for sharper, clearer video images and truer colors.
