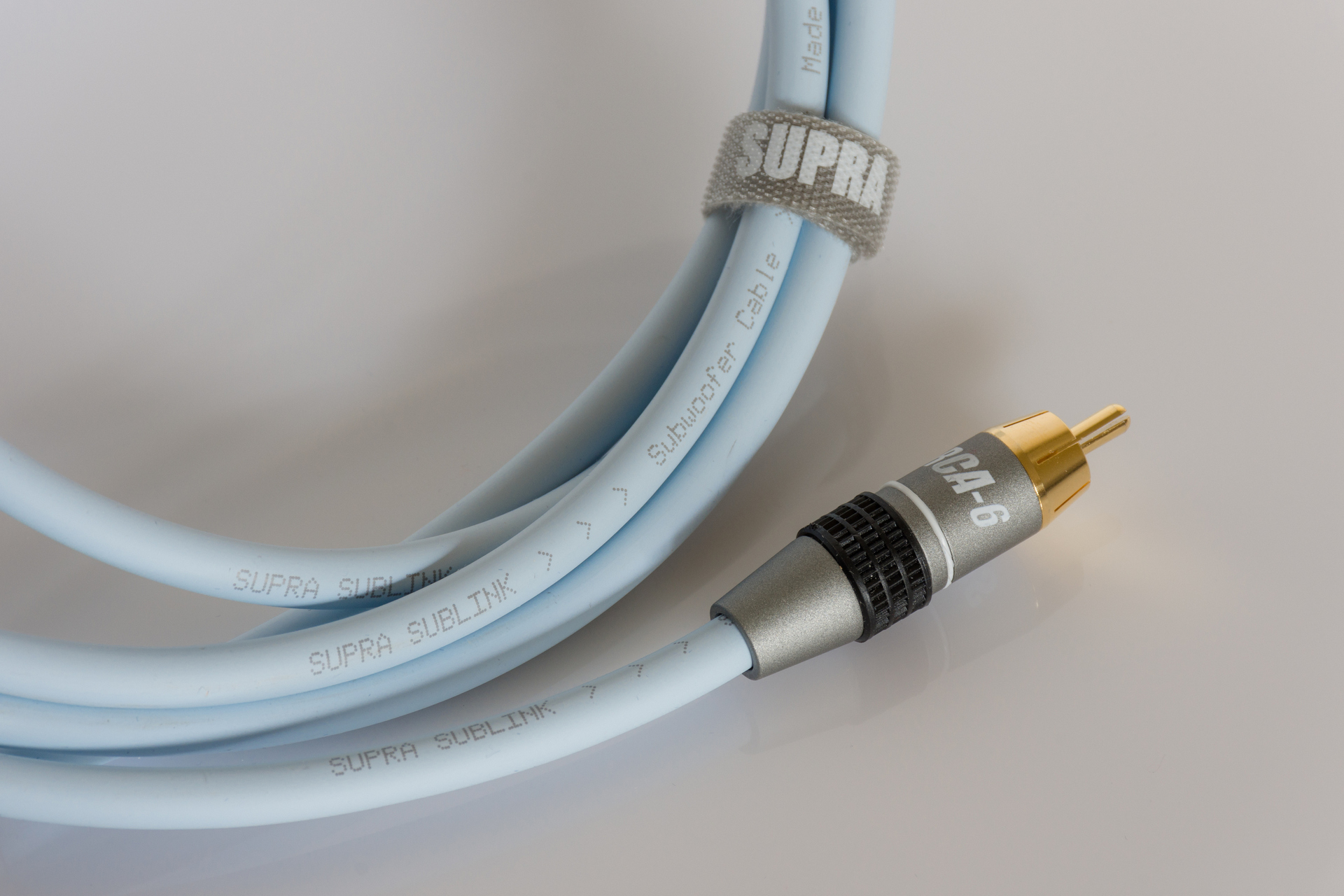

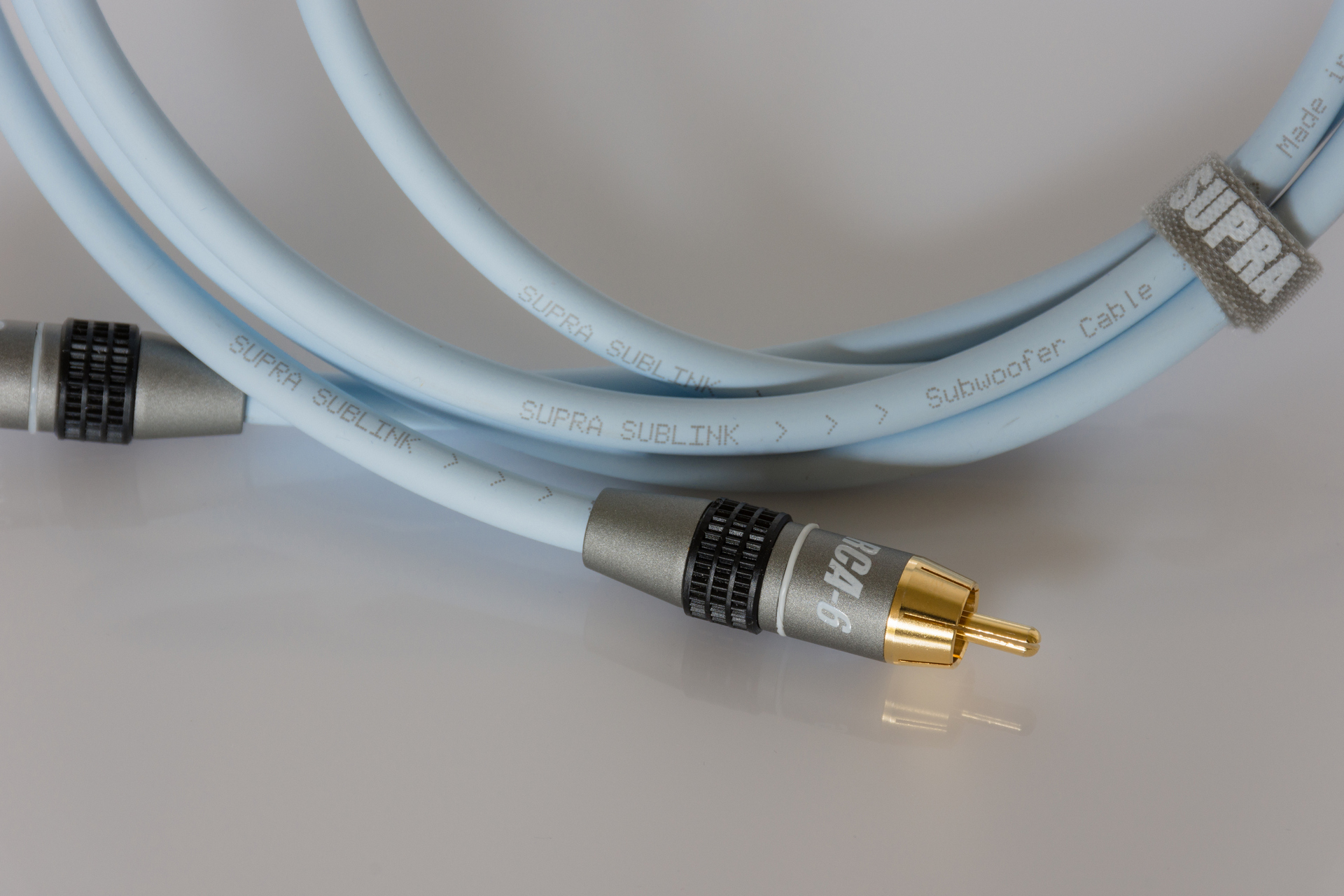

SUPRA Sublink RCA Subwoofer Cable
SUPRA Sublink RCA – Single Channel Subwoofer Cable
Supra Sublink RCA – Single Channel Sub-Woofer Cable
For single channel connection between e.g. a receiver and an active sub-woofer (often called LFE channel = Low Frequency Effects). Supra Sublinks low capacitance and high noise interference immunity make longer cable routing possible, which most often is the case for sub-woofer connections. Further the low capacitance allow bass pulse build-up without flattening or slow down, the really desirable property of an excellent hifi sub-woofer sound.
Features and benefits
Shielding – very silent from noise and microphony
Easy to install – fits also perfect in conduits
Low capacitance – Allows for bass pulse without flattening or slowing down
Robust connectors – Noise immune and gold plated for a long service life
Made in Sweden!
Technical Info:
Supra Sublink – Mechanical data
Number of leads: 3 (+, – and earth) pieces
Lead area: 0.24 / 24 mm2 / AWG
Number of strands per lead: 19 pieces
Strand diameter: 0.127 mm
Lead material: Tin plated, oxygen-free, 5N copper
Di-electric (insulation): PE
Shield: Aluminized PET foil
Jacket: PVC
Outer dimension: Ø 6.0 mm
Cable weight (without connectors): 48 g/m
Supra Sublink – Electrical properties
Resistance: 72 Ω / km
Capacitance: 52 pF / m
Velocity factor: 0.66 x C (speed of light)
Supra RCA-6 Plug – Mechanical specification
Contact type: RCA male
Conductor and contact material: 24K Gold plated Copper
Insulation: PTFE
Housing sleeve: Aluminum rear mounted1)
Contact fixation: Expanding outer ring
Cable fixation: Solder
Strain relief: Sheet metal clamp ring
Maximum cable diameter: 5 – 6 mm
Dimensions: (Ø x L) 12 x 50 mm
SUPRA Sublink RCA Subwoofer Cable
SUPRA Sublink RCA – Single Channel Subwoofer Cable
Supra Sublink RCA – Single Channel Sub-Woofer Cable
For single channel connection between e.g. a receiver and an active sub-woofer (often called LFE channel = Low Frequency Effects). Supra Sublinks low capacitance and high noise interference immunity make longer cable routing possible, which most often is the case for sub-woofer connections. Further the low capacitance allow bass pulse build-up without flattening or slow down, the really desirable property of an excellent hifi sub-woofer sound.
Features and benefits
Shielding – very silent from noise and microphony
Easy to install – fits also perfect in conduits
Low capacitance – Allows for bass pulse without flattening or slowing down
Robust connectors – Noise immune and gold plated for a long service life
Made in Sweden!
Technical Info:
Supra Sublink – Mechanical data
Number of leads: 3 (+, – and earth) pieces
Lead area: 0.24 / 24 mm2 / AWG
Number of strands per lead: 19 pieces
Strand diameter: 0.127 mm
Lead material: Tin plated, oxygen-free, 5N copper
Di-electric (insulation): PE
Shield: Aluminized PET foil
Jacket: PVC
Outer dimension: Ø 6.0 mm
Cable weight (without connectors): 48 g/m
Supra Sublink – Electrical properties
Resistance: 72 Ω / km
Capacitance: 52 pF / m
Velocity factor: 0.66 x C (speed of light)
Supra RCA-6 Plug – Mechanical specification
Contact type: RCA male
Conductor and contact material: 24K Gold plated Copper
Insulation: PTFE
Housing sleeve: Aluminum rear mounted1)
Contact fixation: Expanding outer ring
Cable fixation: Solder
Strain relief: Sheet metal clamp ring
Maximum cable diameter: 5 – 6 mm
Dimensions: (Ø x L) 12 x 50 mm
