DALI PHANTOM K-80 je ugradni zvučnik za plafon sa vuferom od 8 inča. Zasnovan je na vrlinama poznate PHANTOM E-serije, ali donosi bolji zvuk i usmerivi visokotonac sa mekom kupolom koji vam omogućava da prilagodite zvuk svakoj situaciji.
Finiš: Bela mrežica (Classic)
Jednostavna instalacija: Sistem montiranja putem "dogleg" nosača omogućava brzu ugradnju: jednostavno okrenite vijke kako biste rotirali držače i pričvrstili ih na mesto.

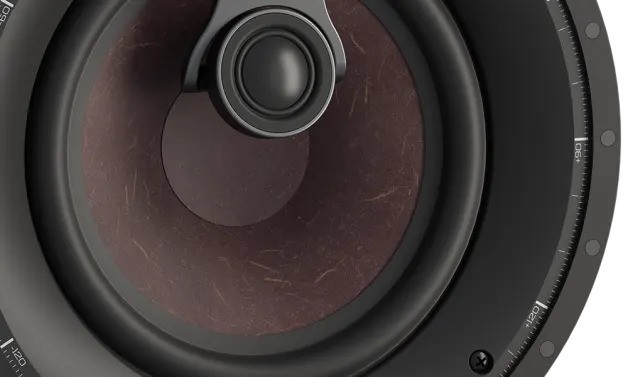

Van-osni (Off-axis) vufer: Membrana od drvenih vlakana je montirana van centralne ose kako bi se smanjili koloracija i izobličenja za ujednačeniji frekventni odziv, dok blisko postavljen visokotonac poboljšava tajming i fazu.

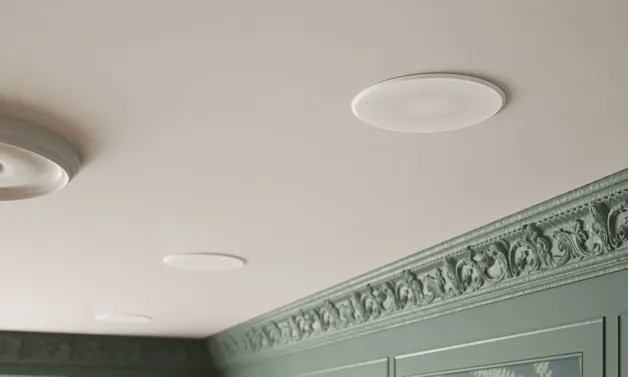

Diskretan dizajn: Novi dizajn zaštitne mrežice je tanji, diskretniji i dolazi u potpuno beloj boji. Takođe je kompatibilan sa PHANTOM E serijom.
Dostupna kućišta (Back-cans): PHANTOM K kućišta, koja se lako instaliraju, pružaju snažniji gornji bas – idealno za kupatila ili hodnike koji tipično imaju više jeke (reverberacije).
VRHUNSKI ZVUK U PLAFONU
Prilikom razvoja PHANTOM K serije, cilj je bio kreirati najbolji mogući dizajn ugradnog zvučnika. Od vufera sa prepoznatljivom membranom od drvenih vlakana, gumenim vešanjem sa niskim gubicima i optimizovanim magnetnim sistemom, do podesivog visokotonca montiranog na aluminijumskom nosaču – svaki detalj je optimizovan za izvrsnost.
PRILAGOĐENA KUĆIŠTA (Back-cans)
Za model K-80 kreiran je novi dodatak u vidu kućišta za naknadnu ugradnju ako klasična kutija nije moguća. Iako malo, kućište je savršeno podešeno za snažniji gornji bas u prostorijama sa velikim odjekom. Vufer je površinski obrađen kako bi bolje izdržao vlagu i vlažna okruženja (npr. kupatila).
MEMBRANA OD DRVENIH VLAKANA
Korišćenjem DALI tehnologije drvenih vlakana, vufer reprodukuje svaki sitni detalj muzike, pružajući srednji opseg visoke rezolucije i precizan, koherentan bas bez koloracije.
POBOLJŠANO BAS ISKUSTVO
PHANTOM K-80 proizvodi impresivan bas za svoju veličinu zahvaljujući velikim magnetima i sistemu sa dugim hodom. Srednji opseg je namerno blago povučen kako bi se dobio utisak "većeg" i "zaobljenijeg" zvuka, što se često preferira kod ugradnih zvučnika. Prekidači na zvučniku omogućavaju fino podešavanje zvuka prema ličnom ukusu.

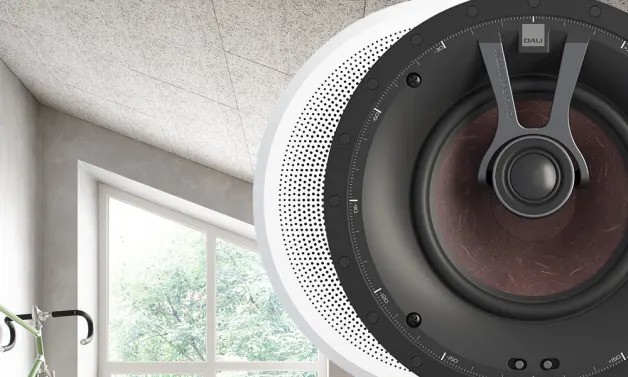

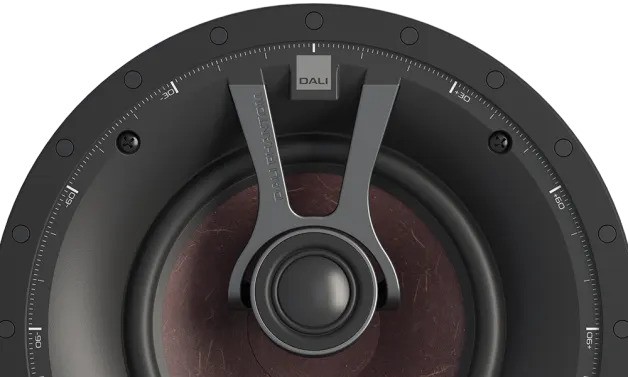

USMERIVI VISOKOTONAC
Visokotonac od 28 mm sa mekom kupolom izabran je zbog odličnog tranzijentnog odziva i visoke osetljivosti. Montiran je na čvrst, antirezonantni aluminijumski nosač i može se nakositi ka poziciji slušanja za još bolje performanse visokih frekvencija.
Tehničke specifikacije
Princip skretnice: Dvosistemski
Visokofrekventni drajver: 1 x 28 mm meka kupola
Nominalna impedansa: 6 Ω
Frekvencija skretnice: 3,300 Hz
Frekventni opseg (+/- 3 dB): 48 - 25,000 Hz
Niskofrekventni drajver: 1 x 8 inča
Maksimalni SPL: 107 dB
Preporučena snaga pojačala: 50 - 200 W
Osetljivost (2.83V/1m): 90 dB (iz specifikacije)
DALI PHANTOM K product sheet
Easy Installation
The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place.
Off-axis Woofer
The wood fibre cone is mounted off-axis to lower colouration and distortion for a more even frequency response, while the closely aligned tweeter improves timing and phase.
Discreet Design
The new grille design is slimmer, more discreet and comes in true white. It's also compatible with the PHANTOM E series.
Back-cans Available
Easy-to-install PHANTOM K back-cans deliver a punchier upper bass – ideal for bathrooms or hallways with typically more reverberation.
IN-CEILING EXCELLENCE
Taking cues from traditional speaker design
When developing the PHANTOM K series speakers, our goal was to create the best in-ceiling speaker design we could. From the off-axis woofer featuring our signature wood fibre cone, low loss rubber surround, long excursion and optimised magnet system, to the wishbone mounted, adjustable soft dome tweeter and unique back-can mounting option, every detail has been optimised to create a speaker series that excels in every way.
CUSTOM BACK-CANS
A convenient retrofit solution
For the PHANTOM K-60 speaker we've created a new accessory back-can for simple retrofitting into your ceiling if a backbox isn't possible. The back-can might be small, but it's tuned to perfection with a punchier upper bass that can produce better sound in rooms with higher reverberation, such as bathrooms and hallways (side note: the woofer cone is surface treated to better withstand moisture and damp environments). And as the back-can is no wider than the K-60 itself, if fits through the same hole for simple installation.
WOOD FIBRE CONE
Delivering high-resolution midrange and precise, coherent bass
A true Hi-Fi speaker can deliver a believable soundstage and render even the smallest microdetails without colouration. Using our signature wood fibre cone technology, the PHANTOM K-60 woofer reproduces every small detail in the music, delivering high resolution midrange and precise, coherent bass.
ENHANCED BASS EXPERIENCE
Optimising the sound profile for amazing bass
The PHANTOM K-60 produces an impressive bass response for its size. We use large magnet systems coupled to a very easy-to-drive moving system with long excursion, delivering deep and articulated bass. We've made the midrange slightly less prominent, giving an impression of more bass and a 'larger' or 'rounder' sound, which is often preferred in an in-ceiling or in-wall speaker. Switches on the PHANTOM K-60 also let you fine-tune the sound to suit your personal taste.
OFF-AXIS WOOFER
Maximising timing and optimising sound dispersion
The woofer is mounted slightly off axis to lower coloration and distortion, which gives a more even frequency response. By doing this, the tweeter can also be positioned closer to the woofer to improve the timing and phase between the two drivers. Angling the woofer also means it can be directed towards the listening position to optimise dispersion of the sound.
TILTABLE TWEETER
A directional tweeter for better high frequency sound
The 28 mm soft dome tweeter has been chosen for its excellent transient response, low colouration and high sensitivity. The oversized tweeter delivers a seamless crossover with the woofer, avoiding dips in the frequency response in the critical midrange. Mounted in a highly inert and practically resonance free solid aluminium wishbone bracket, the tweeter can be tilted towards the listening position for even better high-frequency performance. Tuned mass dampers also help to avoid unwanted distortion from the rest of the enclosure.
SPECIFICATIONS
Frequency Range [+/- 3] dB [Hz] 48 - 25,000
Sensitivity [2.83V/1m] [dB] 87
Nominal Impedance [ohms] 6
Maximum SPL [dB] 107
Crossover Frequencies [Hz] 3,300
Crossover Principle 2-way
Recommended Amp. Power [Watts] 50 - 200
High Frequency Driver 1 x 28 mm soft dom
Low Frequency/Midrange Driver(s) 1 x 8”
