Features

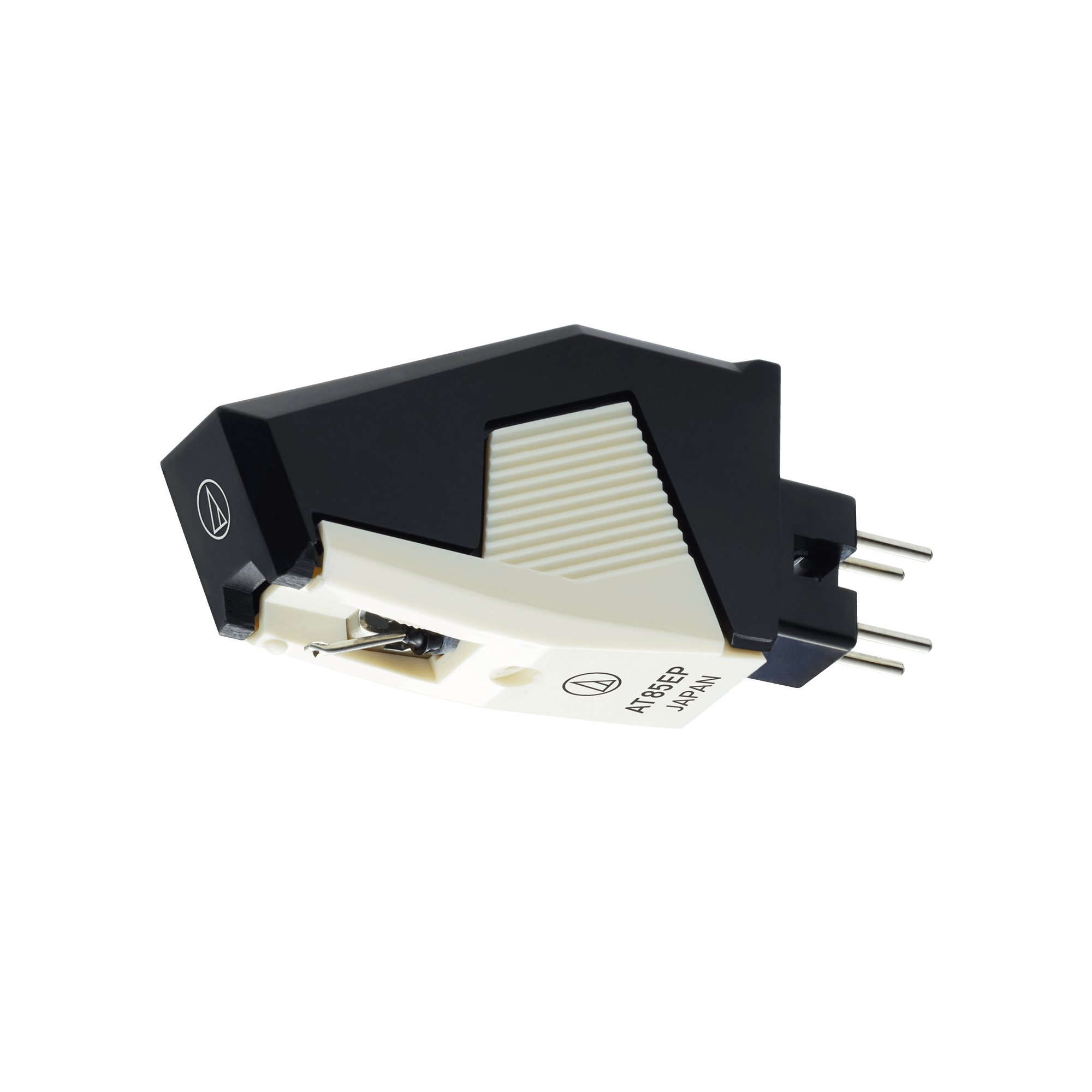

The AT85EP allows owners of Technics™, Hitachi™, Pioneer™* and similar linear tracking turntables with T4P plug-in connectors to enjoy the high-fidelity sound that only Audio-Technica can offer.
Designed specifically for the linear format, the AT85EP features Audio-Technica’s unique dual moving magnet construction. The dual magnet system is combined with the para-toroidal coil construction to assure an excellent sonic clarity and wide channel separation.
Specifications
Cartridge & Stylus
Frequency Response 20 - 20,000 Hz
Channel Separation 20 dB at 1kHz
Vertical Tracking Angle 20°
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000 ohms
Coil Inductance 400mH (1 kHz)
Output Voltage 3.5 mV (mV at 1 kHz, 5 cm/sec)
Output Channel Balance 2.0 dB

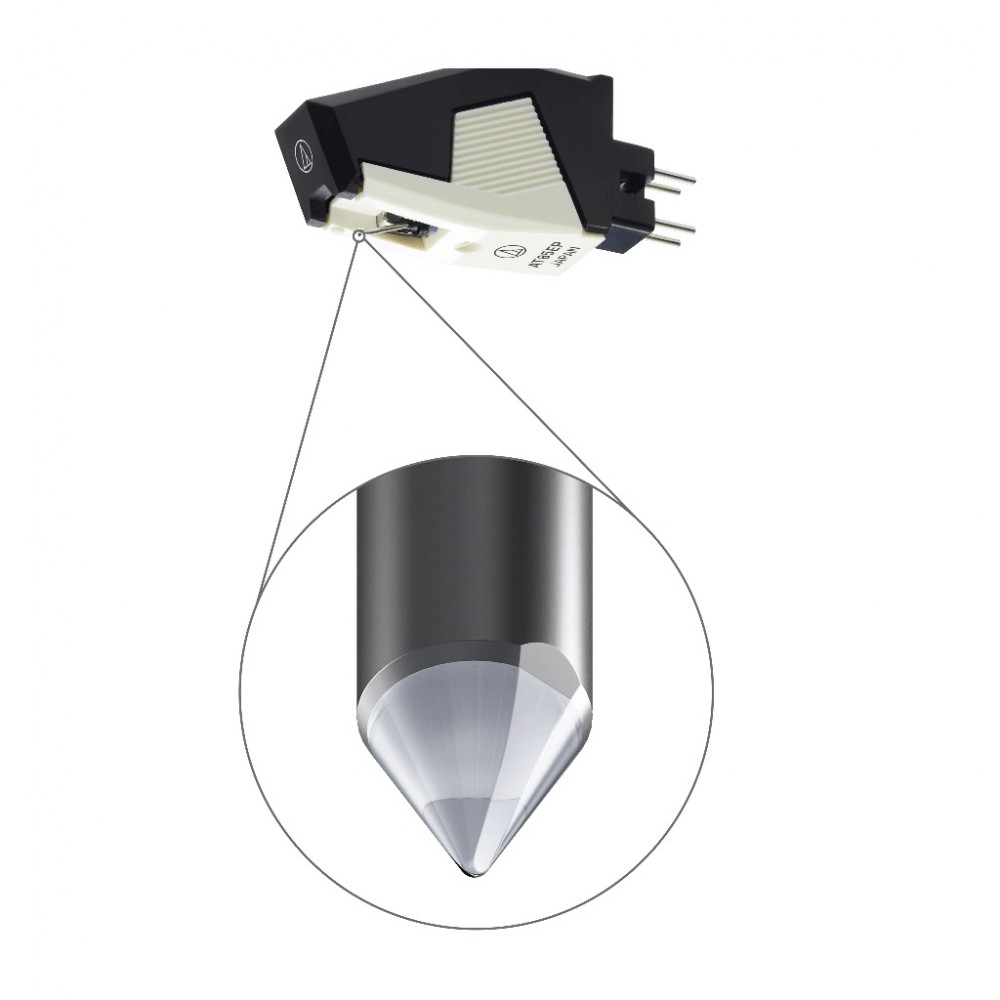

Stylus Shape Elliptical
Cantilever Aluminium Pipe
Mounting P-mount
Dimensions H10.0×W15.3×D35.1 mm
Recommended Load Capacitance 100-200 pF
Replacement Stylus ATN85EP
Stylus Size 0.3 x 0.7 mil
Type Dual Magnet
Weight 6.0g
