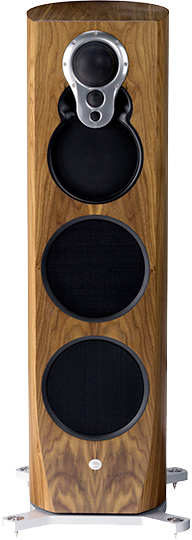

Klimax 350 Passive
Build your dream separates system
Linn’s best passive speaker provides stunning performance out of the box, and the flexibility to upgrade to the ultimate system: Exakt.
It can be used in a passive set-up with the amplifiers of your choice, and upgraded to either a fully integrated Klimax Exakt 350 by simply changing the amp module, or for no-holds-barred performance, using separate Klimax amps and Exaktboxes.
Featuring Linn's 3K driver array for amazing mid and high frequency dispersion and an Aktiv Servo-Driven Bass system for deep, powerful and controlled bass, performance will impress whichever way you use them.
Engineering excellence meets the highest calibre of craftsmanship.
Precision engineered and hand-finished by master craftsmen, Klimax 350 speakers feature a host of innovative technology; from the wide dispersion of our patented 3K Driver Array to the beautifully curved, ultra-low resonance cabinets and precise Aktiv Servo-Controlled bass system.
Available in integrated and passive models, Klimax 350 lets you specify your dream speaker with all the amps and electronics built in, or choose your own external components to build the ultimate separates system.
Technical Specifications
Klimax 350 Klimax 350 Passive
Fully integrated Aktiv loudspeaker with built-in Exakt technology Passive loudspeaker with Aktiv Servo bass
Exakt Yes Yes - with external amps and Exaktbox
Space Optimisation Space Optimisation+ Yes - with a Linn Network Music Player
Speaker Type 6-way Floorstanding 6-way Floorstanding
Crossover Exakt digital Analog passive
On-board Amps 2x 100 W, 2x 400 W, 2x 1000 W 2x 1000 W (Bass only)
Bass System Aktiv servo-controlled Aktiv servo-controlled
Available Upgrades None On-board Exakt Module or Fully External with Exaktbox
Connections
Exakt Link x2 n/a
Binding Post (WBT) n/a x4
XLR (for Aktiv Bass) n/a x1
Drive Units
Super Tweeter 13 mm silk dome 13 mm silk dome
Tweeter 25 mm PU dome 25 mm PU dome
Midrange 75 mm PU dome 75 mm PU dome
Upper Bass 165 mm glass fibre composite 165 mm glass fibre composite
Lower Bass 200 mm servo x2 200 mm servo x2
Finishes
Standard Finishes Black Ash, Rosenut, Walnut, Cherry, Oak, White Black Ash, Rosenut, Walnut, Cherry, Oak, White
Gloss Finishes Piano Black, Rosenut, Walnut, Cherry, Oak, White Piano Black, Rosenut, Walnut, Cherry, Oak, White
Custom Finishes Yes - match any colour Yes - match any colour
Dimensions
Cabinet Volume 50 litres 50 litres
Width (with stand) 404 mm 404 mm
Height (with stand) 1130 mm 1130 mm
Depth (with stand) 482 mm 482 mm
Weight (with stand) 71.2 kg 70 kg
