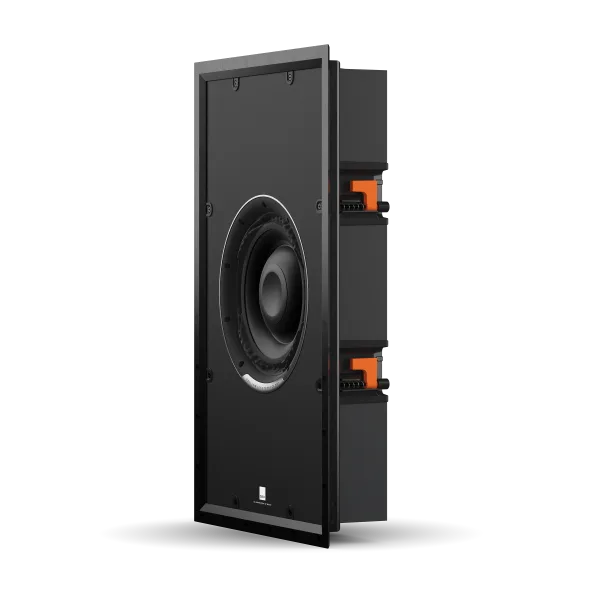

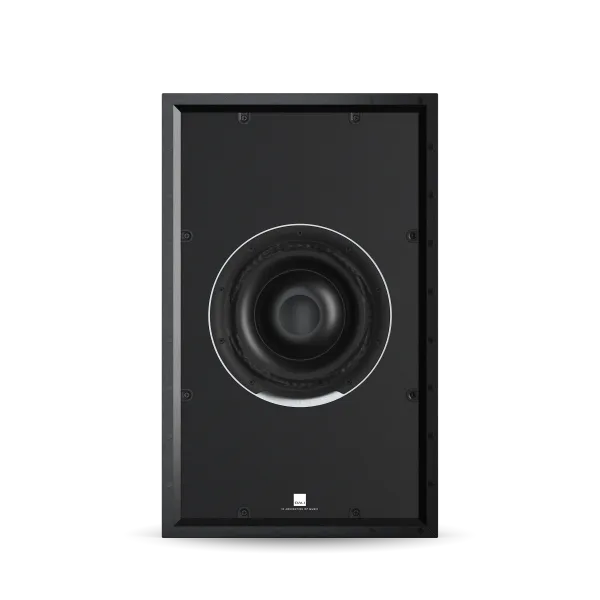

The PHANTOM IW SUB S-100 is a 10-inch in-wall, on-wall or floor-mounted subwoofer with an ultra-shallow profile for simple, discreet installation and ultimate versatility. The rigid construction, high power handling and high volume levels bring an exceptional musical and cinematic performance to any Hi-Fi stereo or multichannel home theatre setup.
Ultimate versatility
Designed for easy in-wall installation or on-wall mounting. The SUB S-100 can even be hidden out of sight below a sofa or piece of TV furniture.
Low-profile installation
With a mounting depth of only 102 mm, the PHANTOM IW SUB S-100 is the perfect balance between high performance and flexible placement.
Powerful Home Cinema Performance
The new 10-inch, ultra-shallow, long-stroke bass driver features Constant Surface Surround (CSS) technology, everything developed from the ground up by DALI's Engineering Team in Denmark.
Integrated backbox for simple installation
The fully enclosed cabinet makes installation extremely easy as you don’t need to install it into a backbox. The speaker is ready for mounting out-of-the-box.
ULTIMATE VERSATILITY
Compact size enables improved usage

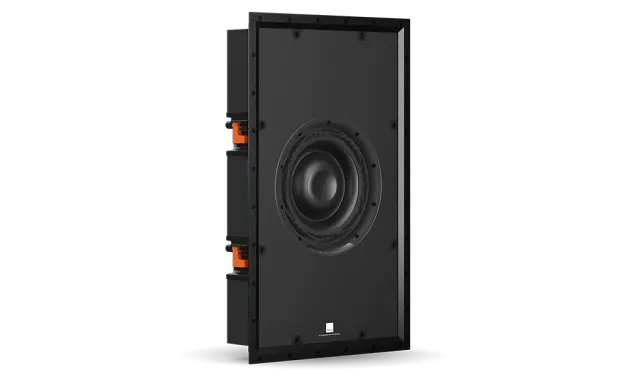

The SUB S-100 is a truly versatile subwoofer that allows for easy, discrete in-wall or on-wall mounting - or you can place it on the floor under your sofa or TV-furniture (with the optional DALI on-wall frame). The SUB S-100 is an amazing home cinema subwoofer for multichannel movies or music, or as a slim alternative to a normal subwoofer in a high performance stereo setup - from small living rooms, to full-blown large home theatres.
LOW-PROFILE INSTALLATION
Ultra-shallow 102 mm mounting depth
The subwoofer's ultra-slim, fully enclosed cabinet fits into almost any standard wall and provides a highly rigid, low-resonance enclosure for the bass unit to operate in. The 10-inch SUB S-100 driver has been designed from the same principles as the outstanding driver developed for the ultra-shallow PHANTOM K-60 LP speaker allowing the total depth of the speaker to be ultra-slim, but still maintain a fantastic low-end reproduction.
POWERFUL HOME CINEMA PERFORMANCE
Featuring CSS technology

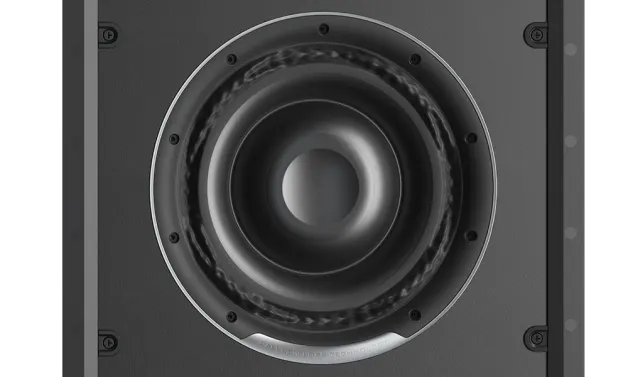

The completely new 10-inch, ultra-shallow, long-stroke bass driver features a Constant Surface Surround (CSS) technology, developed from the ground up by DALI's engineering team in Denmark. Here, the focus is on high power handling and precise low-end response, making the SUB S-100 the perfect partner for any speaker in the DALI PHANTOM series.
INTEGRATED BACKBOX
Enclosed cabinet simplifies installation

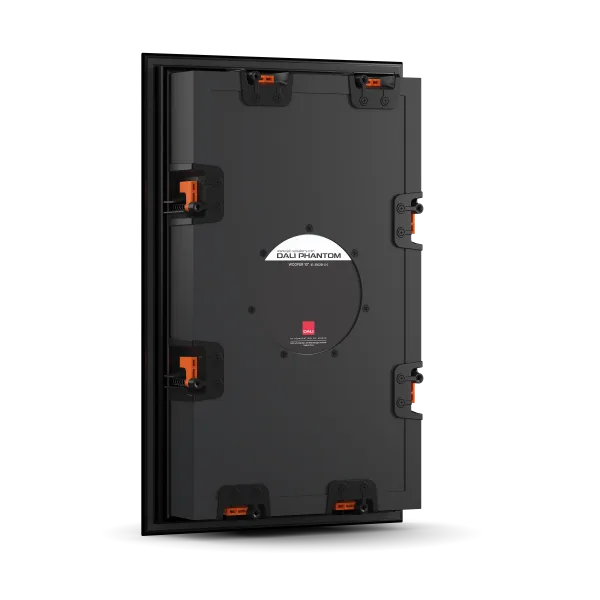

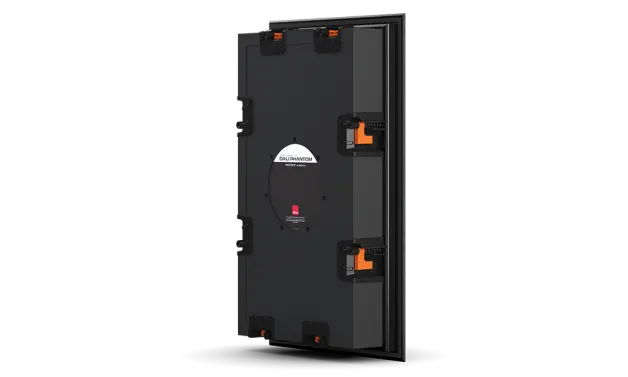

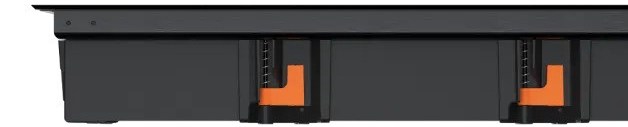

The PHANTOM IW SUB S-100's fully enclosed cabinet makes for simple installation without the need for a separate backbox. The speaker is ready for mounting out-of-the-box. The supplied cut-out template ensures a perfect fit, while eight spring-loaded dogleg brackets secure the SUB S-100 into almost any standard wall.
CONSTANT SURFACE SURROUND TECHNOLOGY
Low-loss rubber surround geometry

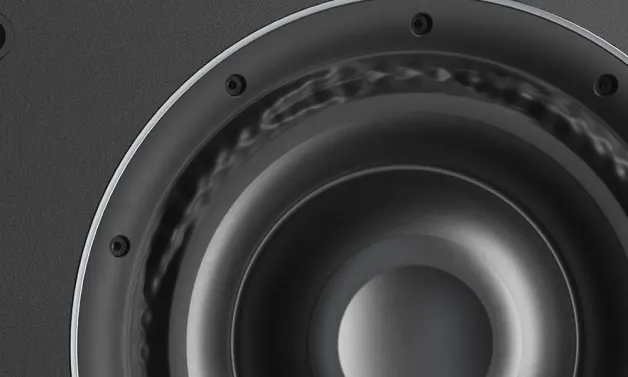

The SUB S-100 bass driver is the world's first in-house developed driver with a unique, low-loss rubber surround geometry that increases linear excursion, reduces self-resonance and lowers overall distortion. We call it Constant Surface Surround (CSS) technology. Co-developed with Purifi Audio in Denmark, CSS improves on conventional rubber surround design with a unique geometry of alternating positive and negative regions that ensures a constant radiating surface, regardless of the position of the diaphragm.
PERFECTLY MATCHED AMPLIFICATION
2 x 500 watts of Class-D amplification

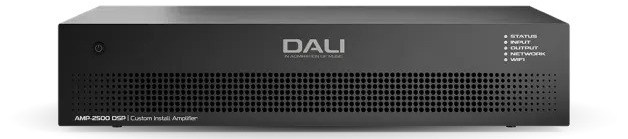

The SUB S-100 has been developed to be used exclusively with the PHANTOM CI AMP-2500 DSP amplifier. With 2 x 500 watts of Class-D amplification, the CI AMP-2500 DSP has enough power to drive up to four SUB S-100 subwoofers – enough for even the largest rooms. Designed in conjunction with the SUB S-100, this rack-mountable amplifier also features integrated DSP, which has been fine-tuned to match the SUB-100's sound profile perfectly.
Technical Specifications
DALI PHANTOM S SUB S-100*
Frequency range 26 - 250 Hz, ±3 dB
Sensitivity 84 dB @ 1 m for 2.83 V
Nominal impedance 6 ohm
Recommended amplifier power 200 - 500 W RMS
Recommended amplifier DALI PHANTOM AMP-2500 DSP
Maximum SPL 110 dB @ 1 m
Low frequency driver 1 x 10 inch long throw, low profile
Low frequency diaphragm Anodised aluminium
Connection input Single wire
Enclosure type Closed box / Infinite baffle
Installation location In-wall / On-wall / Floor
Outer dimensions incl. grille (H x W x D) 657 x 412 x 107 mm / 25.87 x 16.22 x 4.22 inches
Outer dimensions excl. grille (H x W x D) 647 x 402 x 106 mm / 25.5 x 15.9 x 4.21 inches
Cut-out dimensions (H x W) 615 x 370 mm / 24.2 x 14.5 inches
Mounting depth 102 mm / 4.02 inches
Wall thickness (total dog-leg span) 10 - 70 mm / 0.4 - 2.8 inches
Weight incl. grille 17,25 kg / 38.03 lb
Shipping weight 21 kg / 46.3 lb
Finish Black
Accessories Cut-out template
Front grille
Rubber pads
Optional Accessories PHANTOM PHANTOM OW frame S-80
DALI CONNECT SC F222C (speaker cable)
DALI CONNECT SC F215C (speaker cable)
